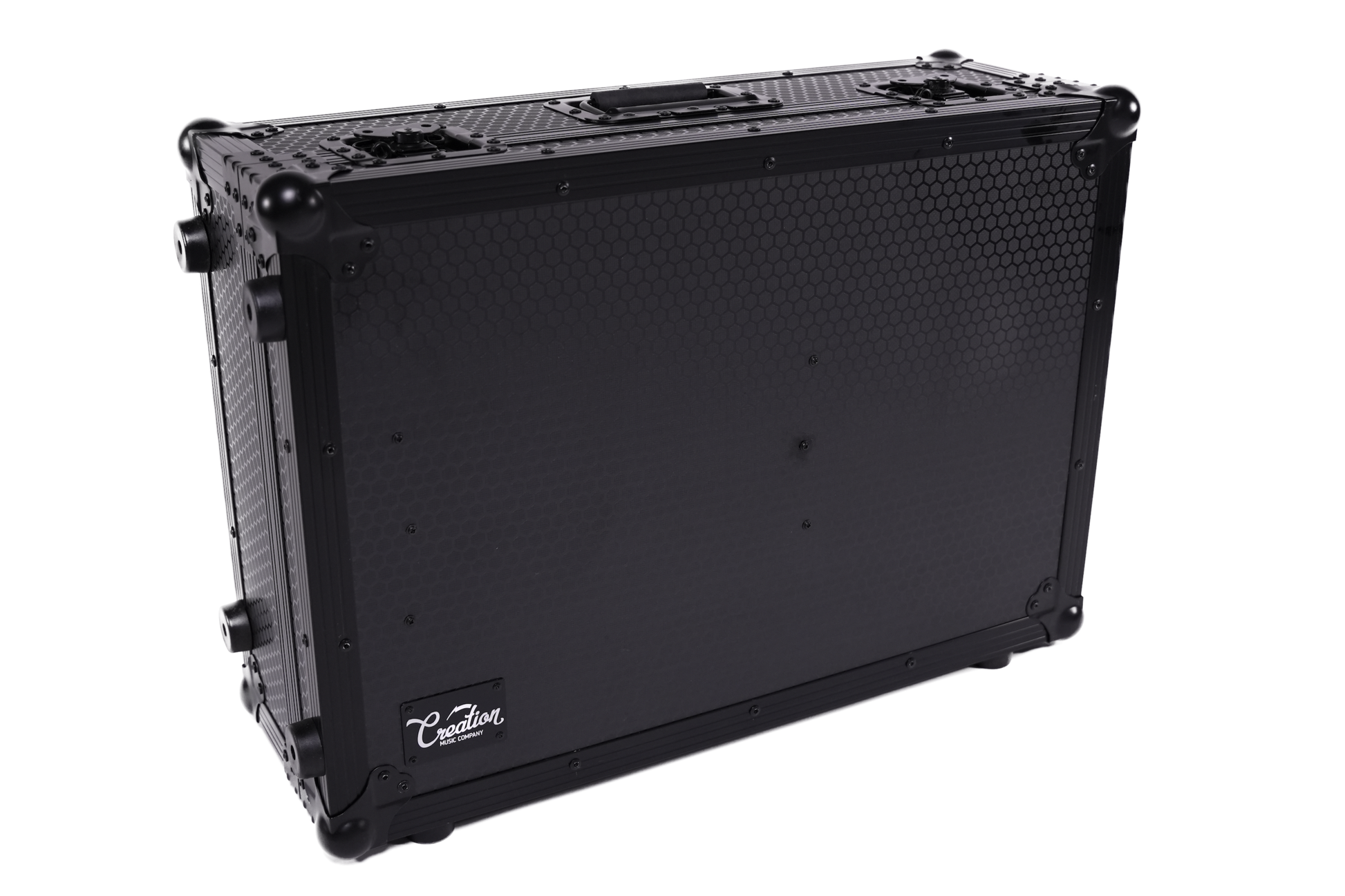

Blackout Pedalboard Flight Case 24+

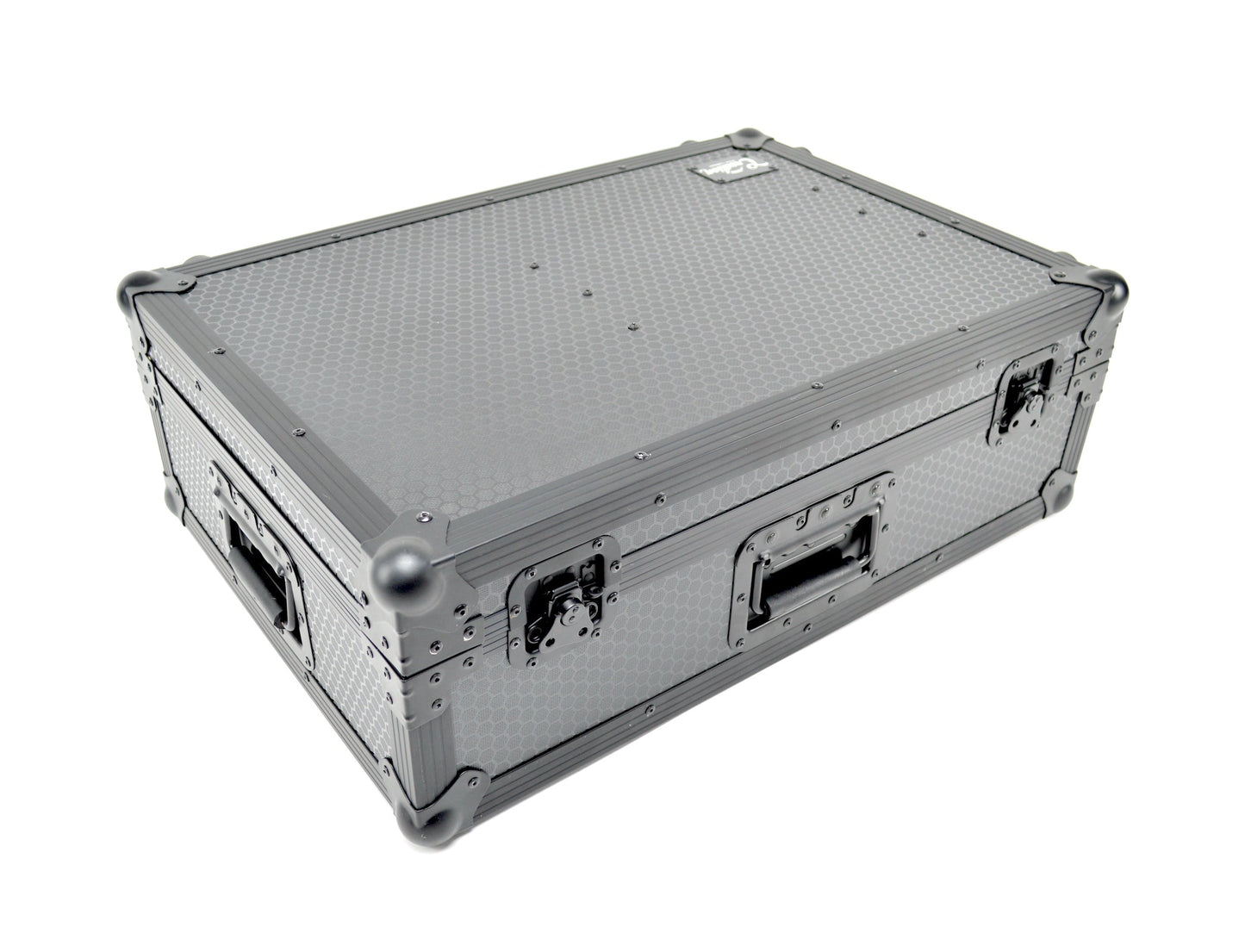

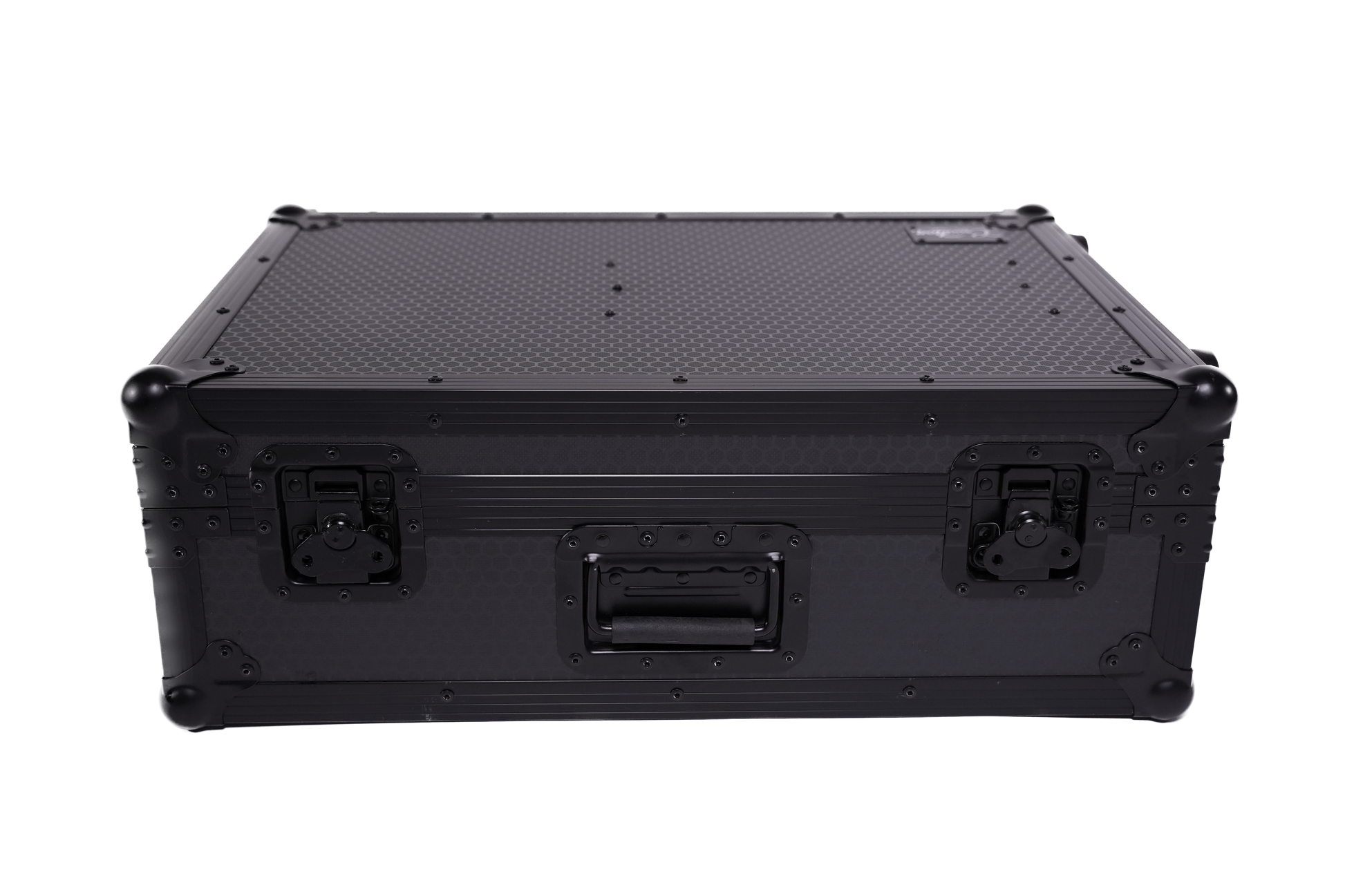

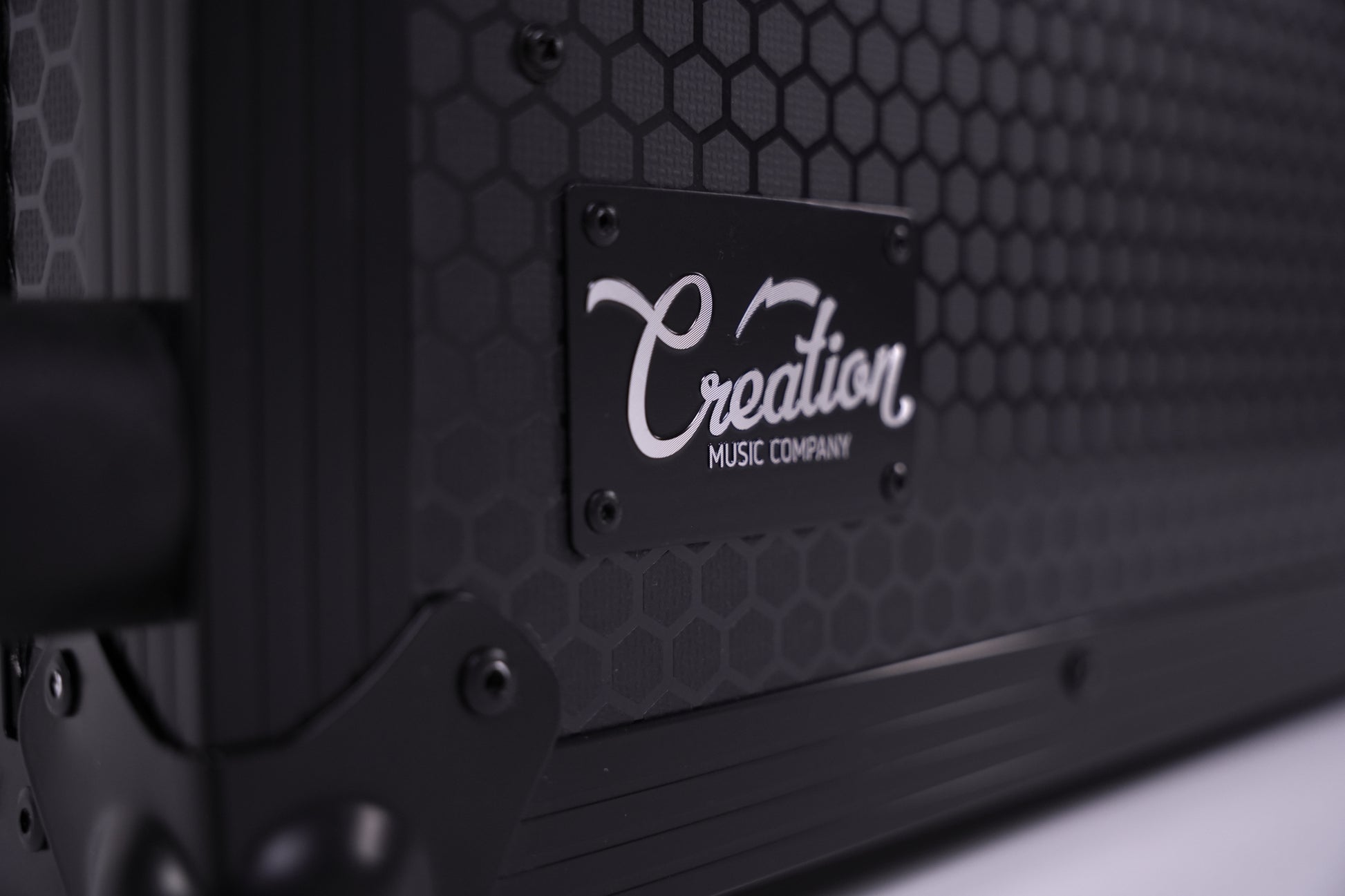

Our improved Blackout Pedalboard Flight Case 24+ was designed to protect your pedalboard and all your pedals inside against the toughest situations. We use top grade hardware and latching, reinforce the edges with black anodized extrusion, and make it overbuilt like a tank with all 3/8" plywood construction coated in a black hex pattern for stunning looks.

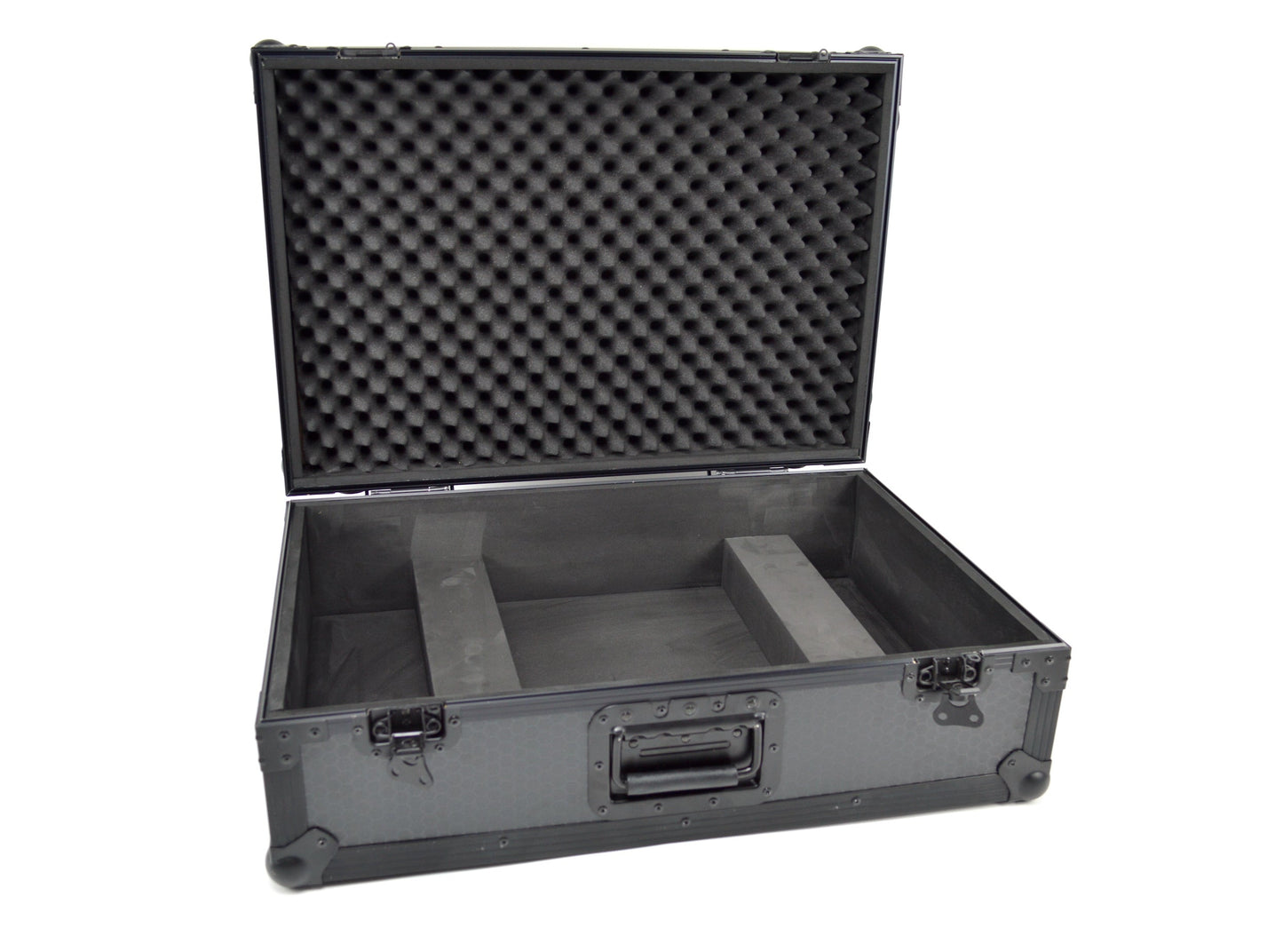

Multi Depth Block

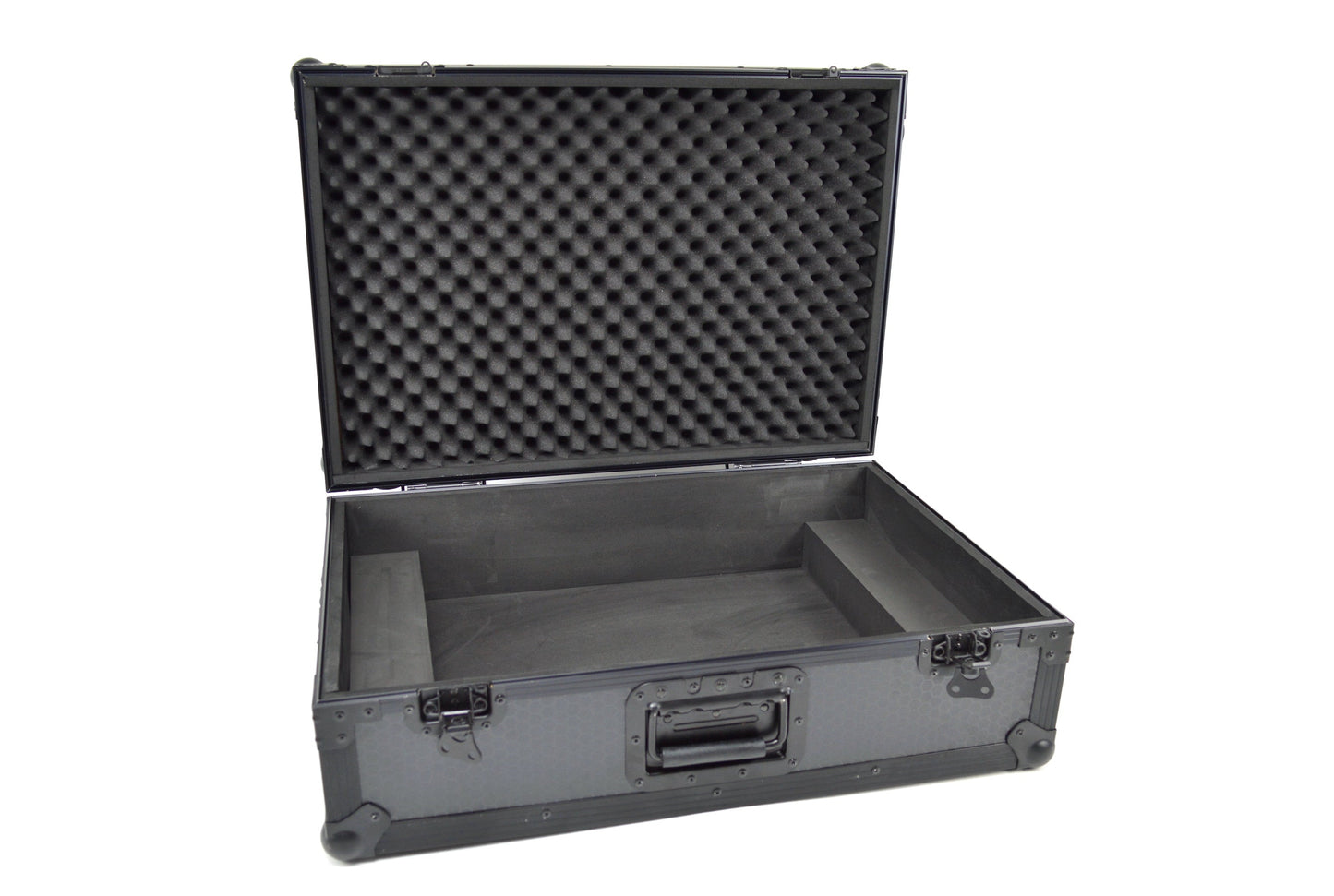

Our improved optional foam blocks are now the full width of the case interior creating support underneath the whole width of the pedalboard with an improved multi depth design. At 2x3 inches you can easily rotate the block to raise something incrementally at 2 inches or 3 inches. Add one block to raise up the short side of an angled pedalboard like our Elevation Series, or add two to create storage and raise up a flat pedalboard Like our Aero Series and create storage underneath

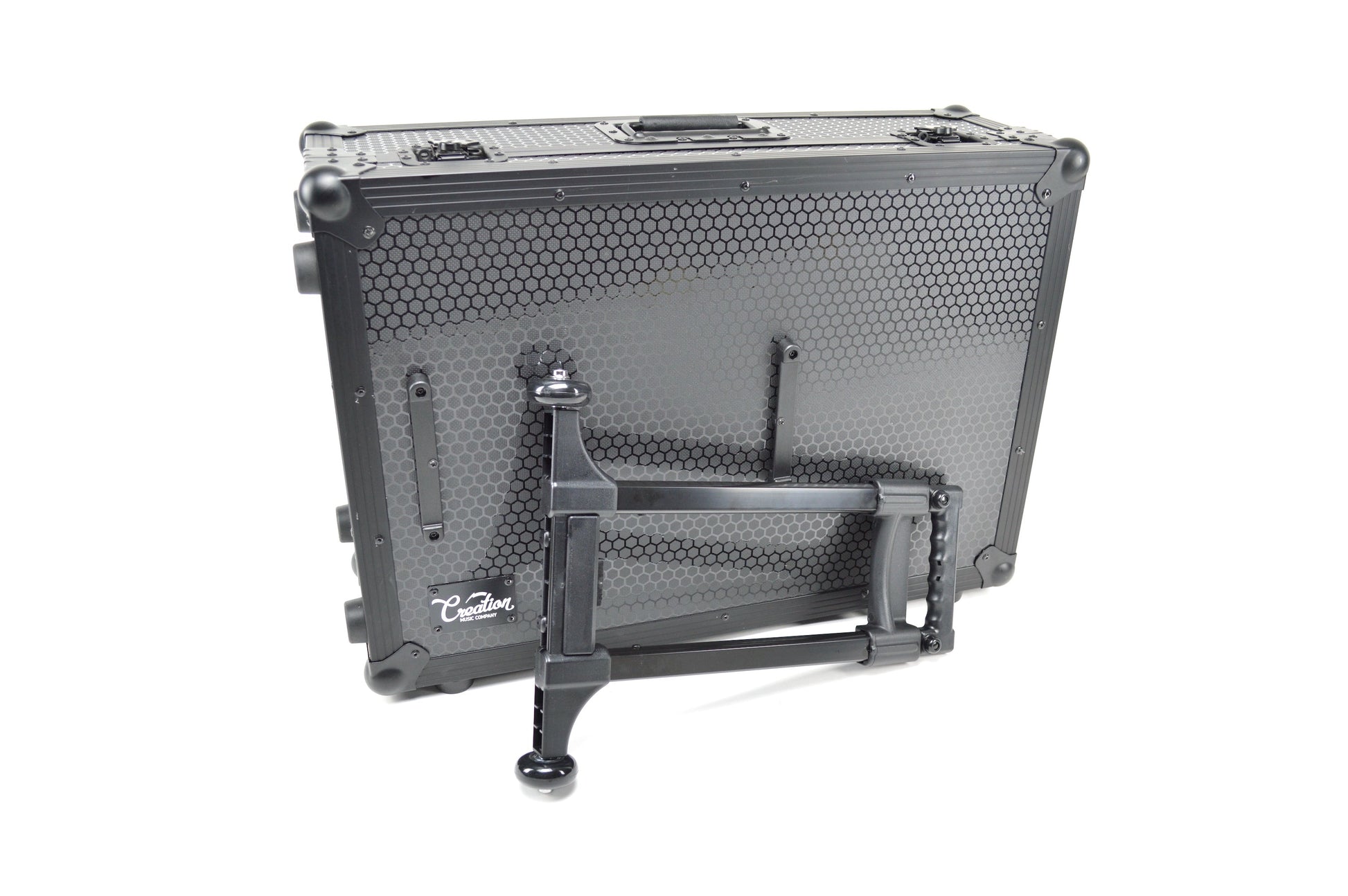

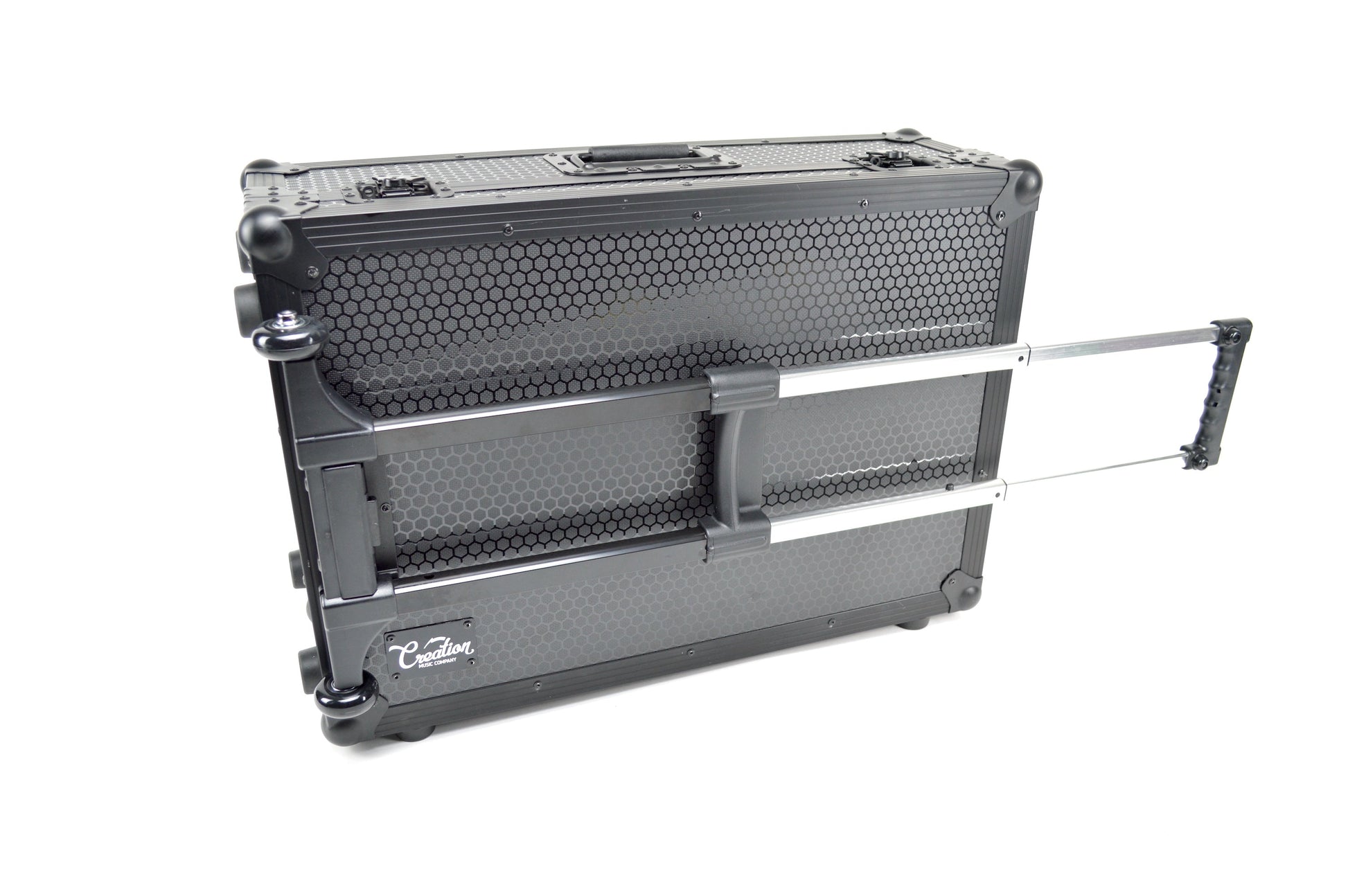

Ready for a Trolley
Every case 28x14 and smaller have hardware pre-installed so that a trolley can easily be added with no need for any modification. All you need is a screw driver to remove the screws already in the lid, align the brackets with the holes, and re-install the screws. Then the trolley can clip on/off with ease for easier transport from your car to venue or around an airport. You can also easily remove the trolley before checking your case for a flight to save weight.

Features

• Designed for Aero 24+ and Elevation 24+ pedalboards (and other 24x16 boards)
• Anodized black aluminum extrusion reinforced edges
• Powder coated black hardware
• *NEW* 3/8" Coated hex pattern plywood construction

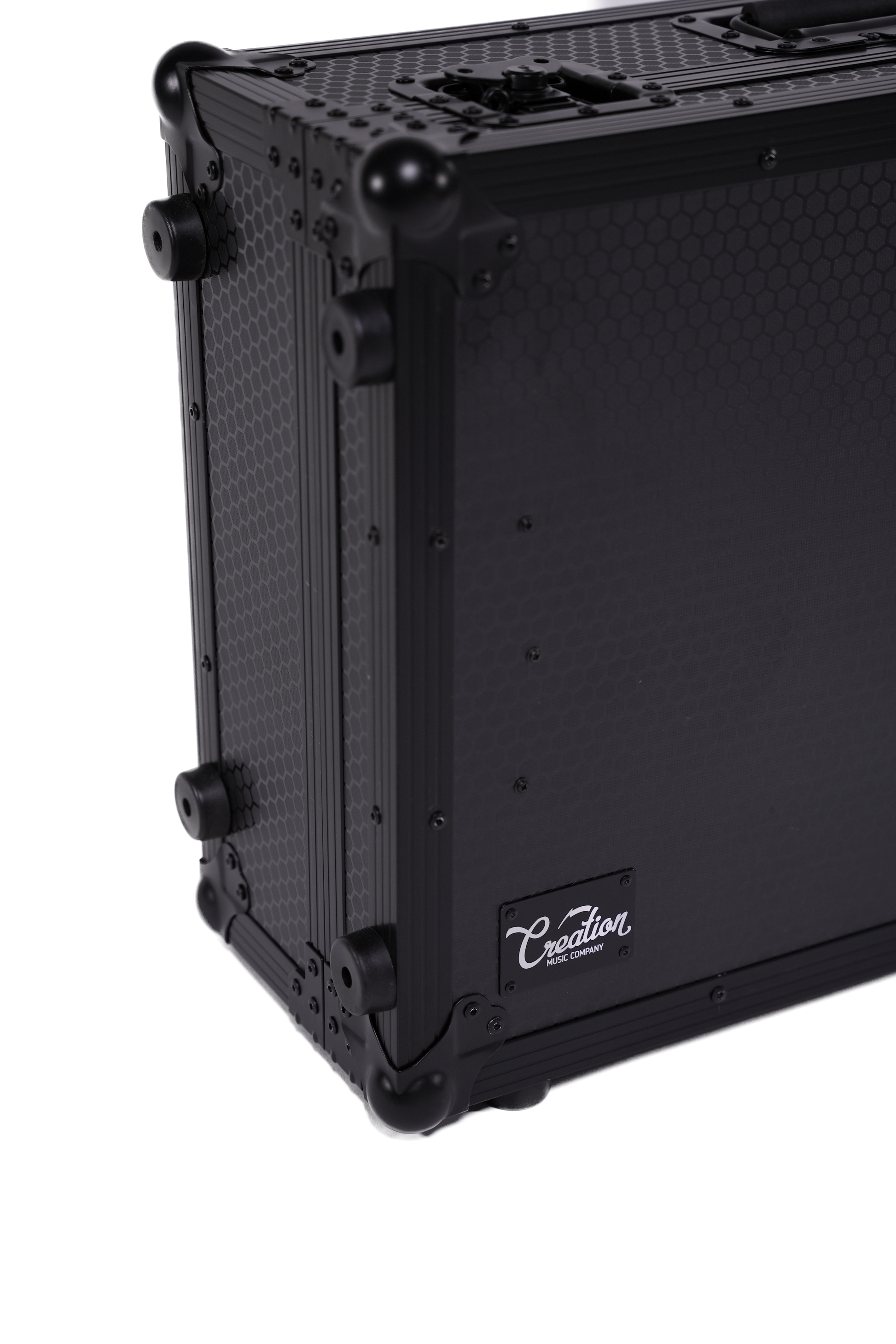

• *NEW* Oversized 6 rivet ball corner reinforcements

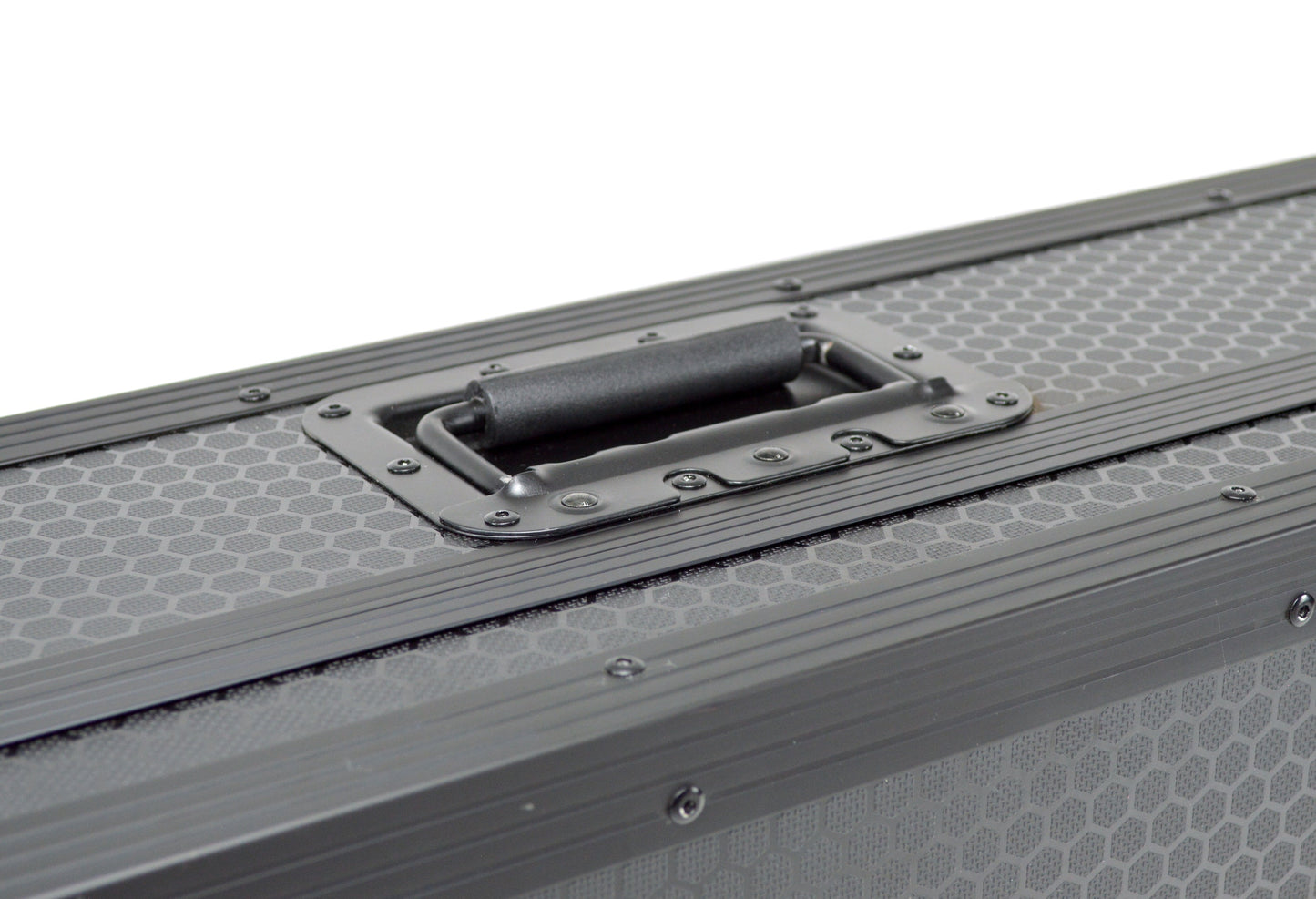

• Spring loaded heavy duty handle on top and one side

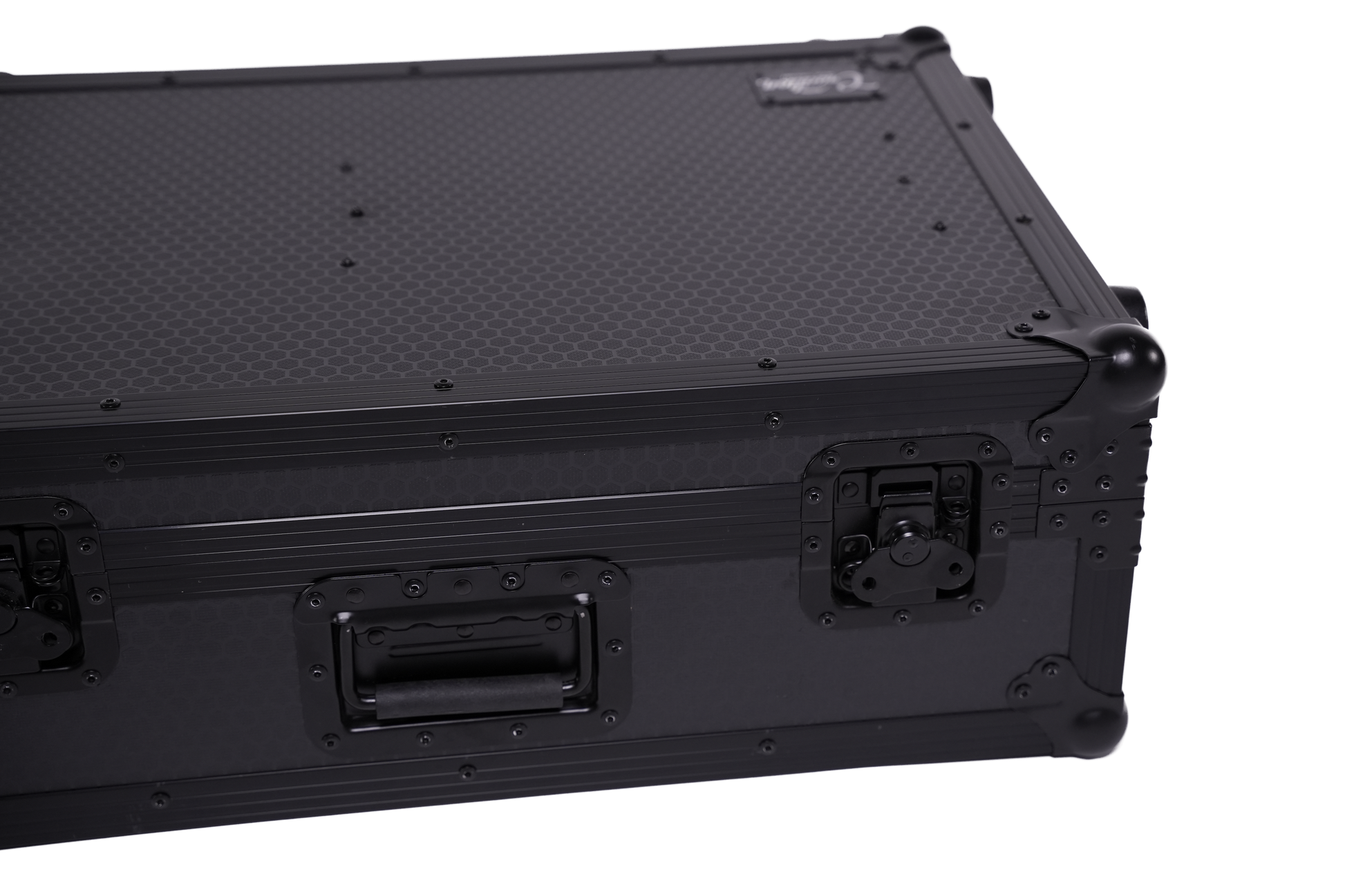

• *NEW* Improved recessed butterfly latches
• Pre-configured threaded holes to add removable trolley
• 1/2 inch EVA foam sides and bottom

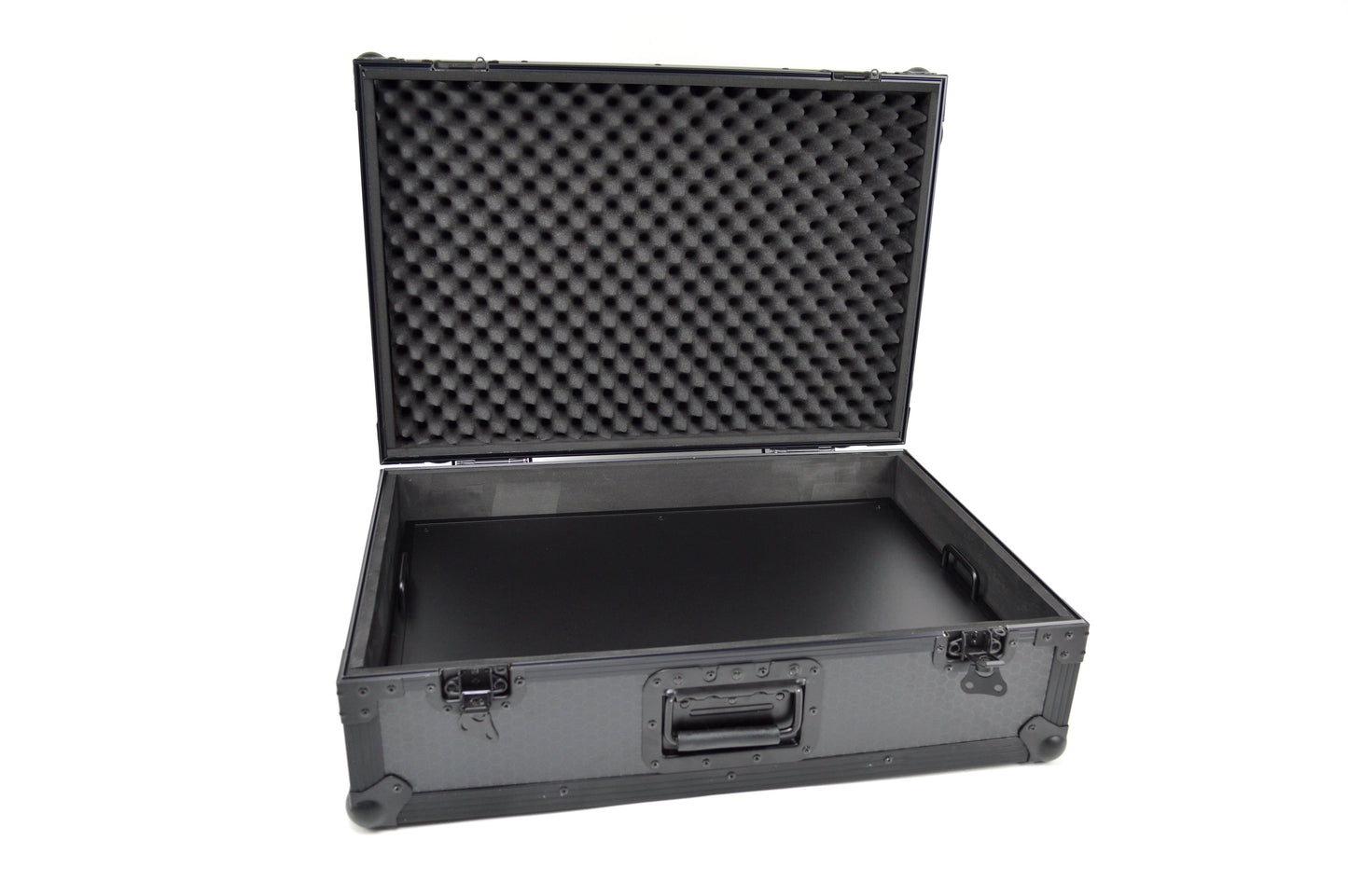

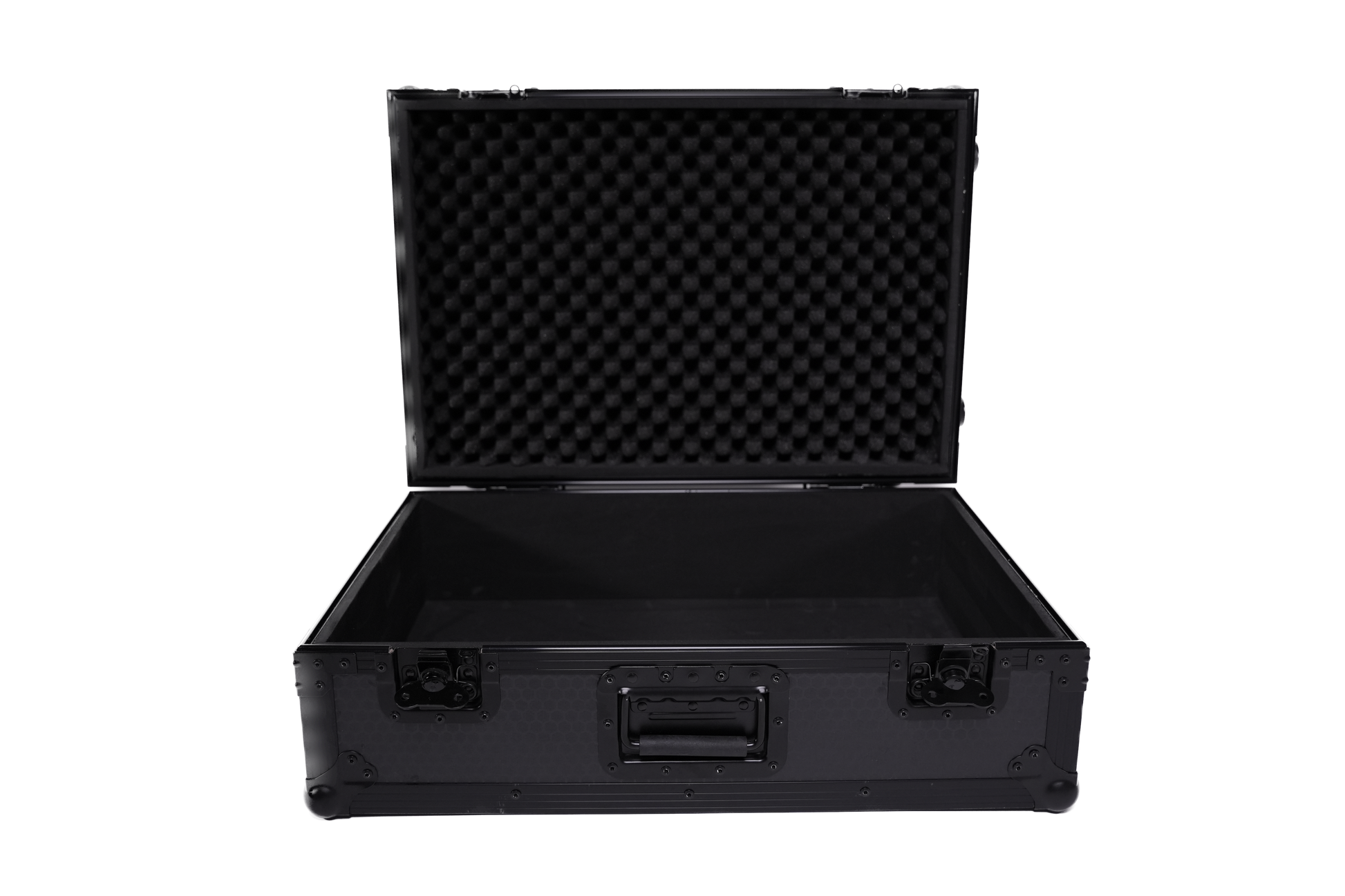

• 2-1/4 Inch convoluted lid foam for maximum pedal compression
• *NEW* Optional Multi Depth 2x3 inch full width EVA foam blocks

Specifications:

• Inside 24.5 x 16.5 x 5.375 inches foam to foam (lid foam compresses for 6.75 inches of maximum clearance)
• Optional foam blocks raise boards 2 or 3 inches inside case.
• Outside (with rubber feet) 26.875 x 18.875 x 9.125
• Weight - 21 lbs

Height - Will my board fit?
These cases are ultimately designed for an Elevation, an Aero using any extension feet, or an Aero+Riser using stock feet (not extensions) with moderately sized pedals at the highest point of each (ex. Strymon Bigsky).

However, with the increase in popularity of rigs utilizing both risers AND extension feet, it is important to outline the maximum limitations of these cases. While we have successfully closed the lid using the 40mm extension feet on an Aero and Riser with a Strymon Bigsky on top, it does requires pressure to push closed and excedes the recommended height. Setups of this height or taller should consider our custom size flight case options allowing us to tailor make a case that fits correctly.

If you plan to modify the foam on your own, the plywood construction is 8-1/4" wood to wood interior dimensions without foam, plus 3/8" rigid EVA foam (minimal compression) on the bottom. and 2-3/8" soft convoluted foam in the lid.

Condition - Due to the manufacturing process and materials used, minor marks in the aluminum from the tooling or slight imperfections in the plywood material are acceptable. It is impossible to have a flawless case. All cases are sorted for quality. Cases with excessive marks or imperfections are separated and marked for B-Stock.

*Pedalboards and trolley shown in photos are not included.
