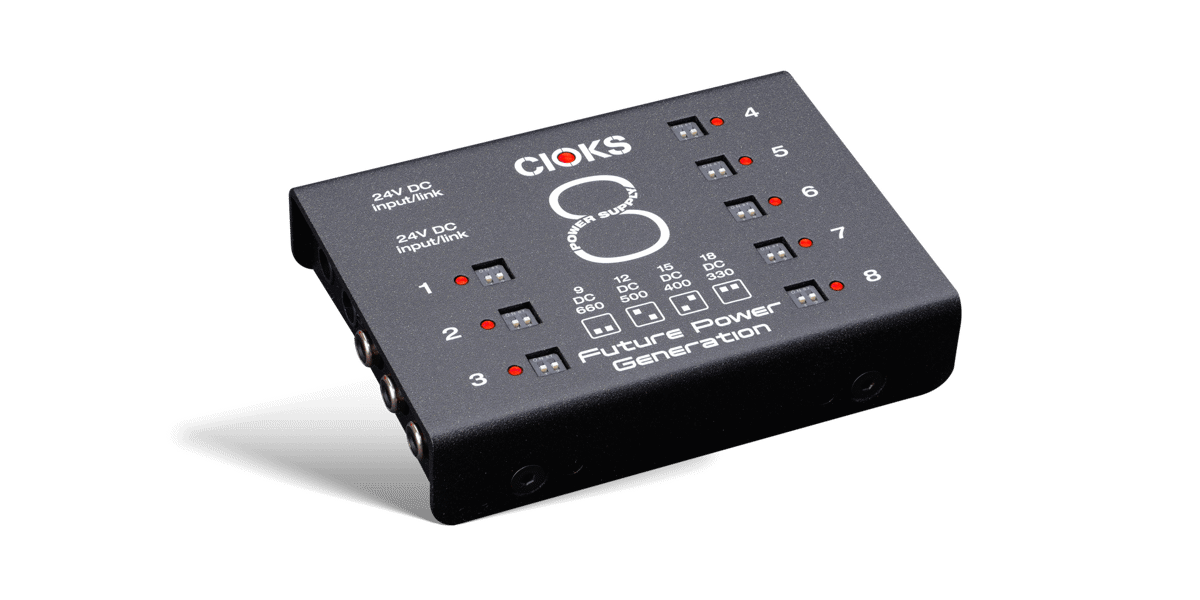

Cioks 8 Expander

CIOKS 8 is our largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four selectable voltages (9V, 12V, 15V and 18V).

CIOKS 8 was primarily designed to be used as a large extension to DC7 in case you need more outlets. If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7)*.

Features:

• CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
• Ultra-low noise achieved by multistage filtering
• 8 isolated DC-outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet
• Global overload status LED
• Total maximum output power 48W
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards**
• 12 Flex cables included
• 24V DC Link cable included
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty

* DC7 and C8e is also available as a combo called the CIOKS Superpower Bundle

** Sold separately

Specifcations:

• Outlet 1-8:
• 9V DC / 660mA or
• 12V DC / 500mA or
• 15V DC / 400mA or
• 18V DC / 330mA each

What's In The Box?

• CIOKS 8 power supply
• 12 Flex cables
• 50cm DC Link cable (to connect to CIOKS DC7)
• Mounting hardware (2 screws and a hex-key)
• Product sheet (drill guide)
• Flex and DC Link cable selection guide
• Sticker (sheet with 2pcs.)
• Manual

Download Manual

*Power supplies are often special ordered on an as needed basis and not always kept as a stock item. For customers wanted power supplies installed on a build, this usually does not cause a delay past the normal build time, but for customers ordered the power supply outright, it can take several days to receive the power supply before we can fulfill your order.
