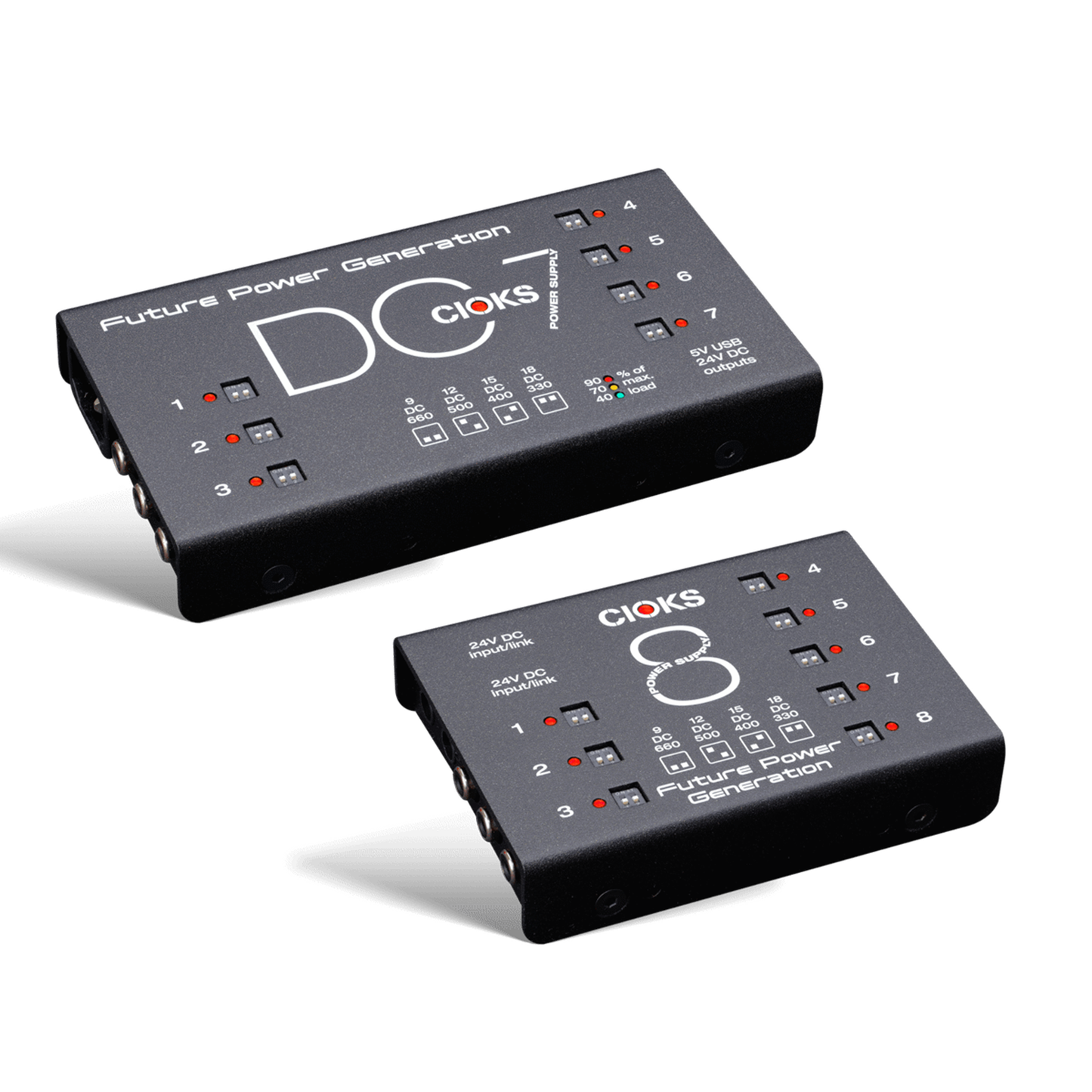

Cioks Superpower Bundle

The Superpower Bundle combines the DC7 and C8 Expander in one box at a convenient  Bundle Price for a total of 15 outputs with up to 660mA.

DC7 - The DC7 is the thinnest, most flexible and most unique power supply for powering effect pedals currently available.

The groundbreaking DC7 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside. The profile may be low but the power ratings are certainly not – the DC7 puts out a maximum of 48W and allows the user to connect multiple high-current effects such as devices from Effectrode, Line 6 and Eventide without noise of any kind.

CIOKS DC7 features 7 isolated DC-outlets for effect pedals each with four selectable voltages. Each of the outlets can put out 6W which corresponds to 660mA of current at 9V. Additionally the DC7 has also a 5V USB outlet and an auxiliary 24V outlet. The DC7 is expandable with CIOKS 4 Expander, CIOKS 8 Expander and the Crux for more isolated outlets and even more flexibility. Combined with the large set of CIOKS Flex cables included we are confident in that this is the most flexible, noise-free solution in the market for powering pedalboards with a multitude of different pedals.

Cioks 8 - CIOKS 8 is our largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four selectable voltages (9V, 12V, 15V and 18V).

CIOKS 8 was primarily designed to be used as a large extension to DC7 in case you need more outlets. If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7)*.

Features:
DC7

• Groundbreaking 1-inch profile (25,4mm)
• 2-stage switch-mode power supply topology
• Ultra-low noise achieved by multistage filtering
• 7 isolated DC-outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet
• 5V USB outlet with max. 1A
• 24V DC auxiliary outlet with max. 2A
• Individual power limit LED on all outputs
• Built-in true power meter showing the total load
• Global overload status LED
• Universal mains input voltage 90 to 265V AC
• Total maximum output power 48W
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards*
• 12 Flex cables included
• Expandable with CIOKS 4*, CIOKS 8* and Crux*
• Weighs 1.1 lbs. (500 grams)
• Designed in Denmark, assembled in Poland

5-year worldwide warranty

Cioks 8

• CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
• Ultra-low noise achieved by multistage filtering
• 8 isolated DC-outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet
• Global overload status LED
• Total maximum output power 48W
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards**
• 12 Flex cables included
• 24V DC Link cable included
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty

** Sold separately

Specifcations:

- Power:
- Outlet 1-7 on DC7 and 1-8 on CIOKS 8. total of 15 outlets: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
- 5V USB / 1A on CIOKS DC7
- 24V DC link on CIOKS 8

- What's In The Box?:
- CIOKS DC7 and CIOKS 8 Expander power supplies
- Mains power cord
- 24 Flex cables & 2 DC Link cables
- Mounting hardware (4 screws and a hex-key)
- 2x manual
- 2x product sheet (drill guide)
- Flex guide
- Flex Cables Included:
- Standard Flex Type 1: Black with 5.5/2.1mm centre negative DC plug (x14)
- Standard Flex Type 2: Red with 5.5/2.1mm centre positive DC plug (x2)
- Standard Flex Type 4: Green with 5.5/2.5mm centre positive DC plug (x2)
- Standard Flex Type 5: Black with tip positive 3.5mm Jack plug (x2)
- Split Flex Type 1: Black with two 5.5/2.1mm centre negative DC plugs (x2)
- 3-Way Daisy Chain Flex Type 1: Black with three 5.5/2.1mm centre negative DC plugs (x2)
- DC Link Cables Included: To connect the CIOKS 8 to the 24V DC aux outlet on CIOKS DC7:
- 1x L2415 black with EJAI plug at each end. 15cm / 6"
- 1x L2480 black with EJAI plug at each end. 80cm / 31"
- Product Dimensions (Without Rubber Feet):
- CIOKS DC7: 160 x 88 x 25.4mm (6.3 x 3.5 x 1.0")
- CIOKS 8 Expander: 120 x 88 x 25.4mm (4.7 x 3.5 x 1.0")
- Product Weight:
- CIOKS DC7: 500g (1.1lb)
- CIOKS 8 Expander: 340g (0.75lb)

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 3.75 lbs

Shipping Dimensions: 15 x 8 x 2 in

DC7 Manual
Cioks 8 Manual

Usually ships in 1-3 business days
