Creation Solderless Kit (Pre-Order)
Creation Solderless Kit (Pre-Order)
Creation Solderless Kit (Pre-Order)

Creation Solderless Kit (Pre-Order)

Regular price
$44.99
Sale price
$44.99

**Pre-Order. We will begin shipping this product Mid to Late November.**

Looking for an affordable solderless system that is simple to make and looks great too? Done. No more stripping cable and wondering if you did it right. Just cut, insert, and screw the cap. That's it.

What's Included:

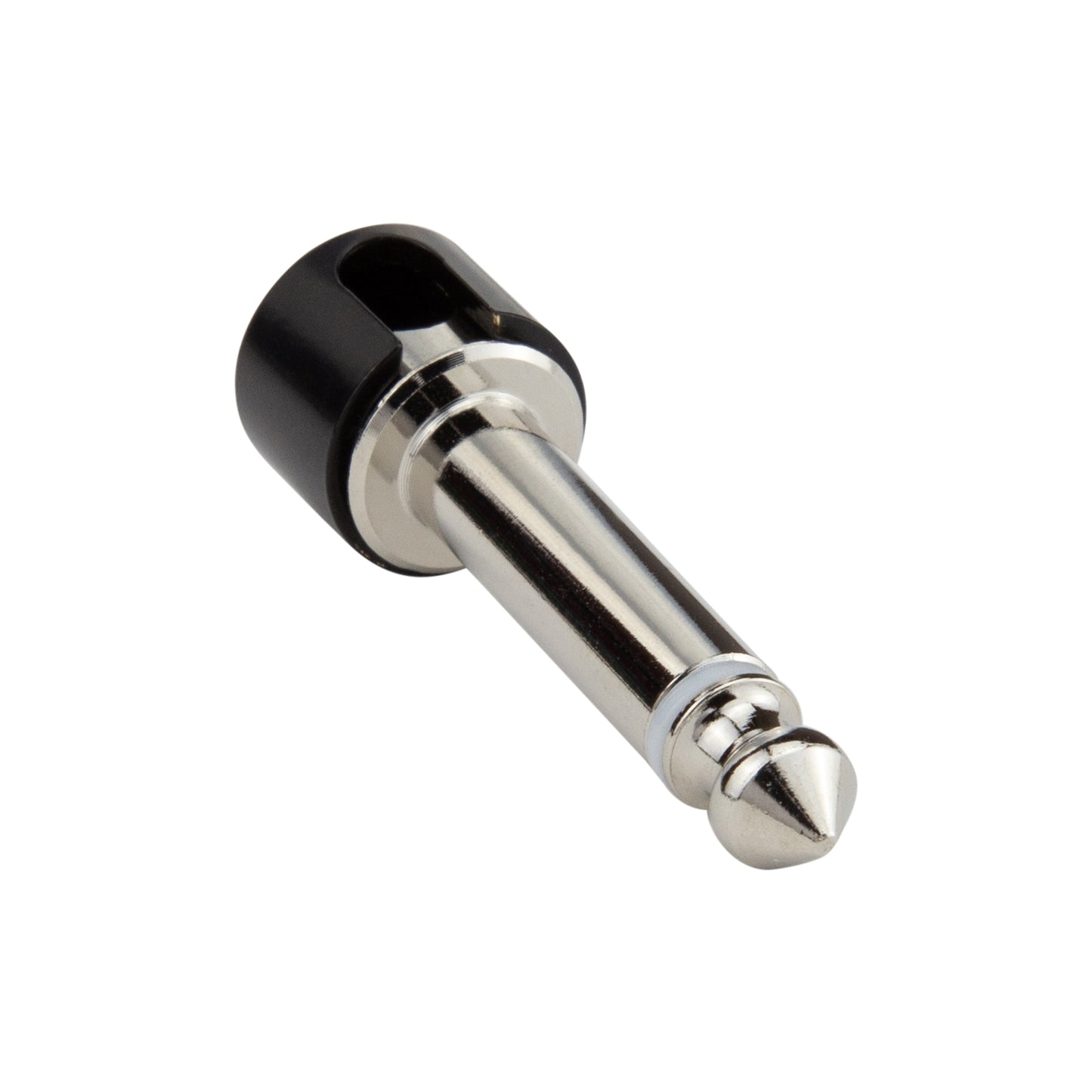

10 Creation Solderless Right Angle Plugs
10 feet of cable

What you will need:
- Something to cut the cable cleanly (cable cutter, scissors, box cuter)
- Small screwdriver

Instructions:

Step 1:

Cut your cable to length with a very clean, straight cut (not at an angle) being careful not to flatten the cable as you cut it.
(If the cable does become flattened, simply roll it between your fingers back into it's original roundness.)

Step 2:

 Insert the cable into the plug pushing firmly.

Step 3:

Bend the cable into the notch and place the cap over the cable and plug. Align the hole for the screw and then thread the screw into the opening. Screw tightly.


Troubleshooting:
Be sure to test each cable as you complete them versus assembling your entire board and only then realizing one was not made correctly.

More than likely if your cable is not functioning properly 1 of 3 issues has occured. 1. Either it's a problem with the cable itself by not being cut straight up and down, or being too flattened when pushed in. Check steps 1 and 2.
2. The cable may not have been pushed in firmly enough.
3. the screw may need to be tightened.

The way the solderless system works is inside the cable, a pin goes into the middle of the wire and the screws breaks through the outer layer to make contact with the ground.
